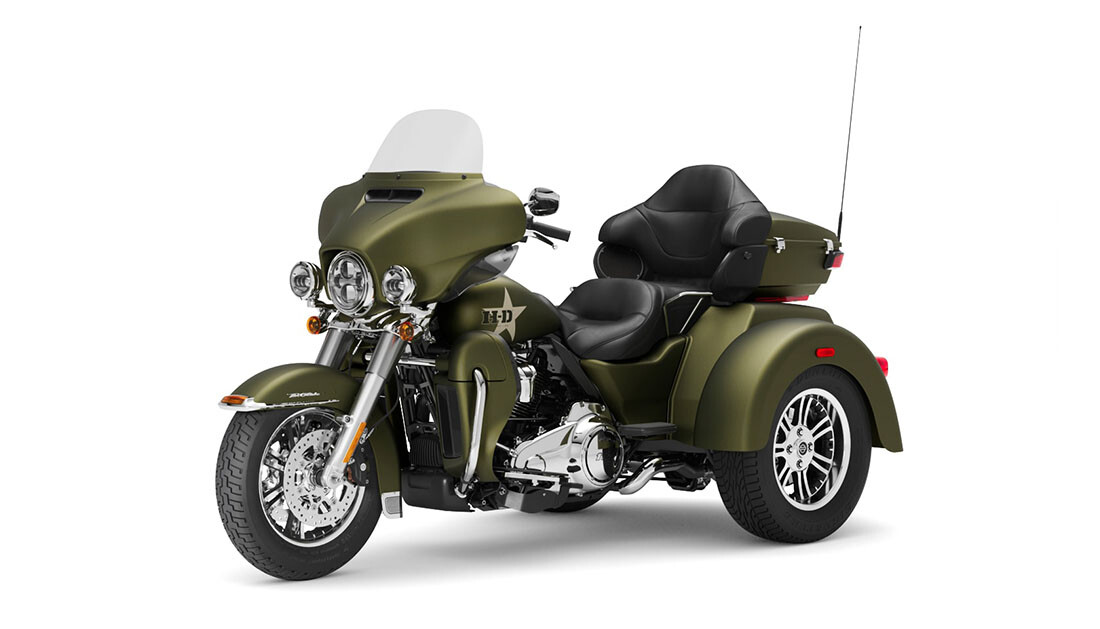

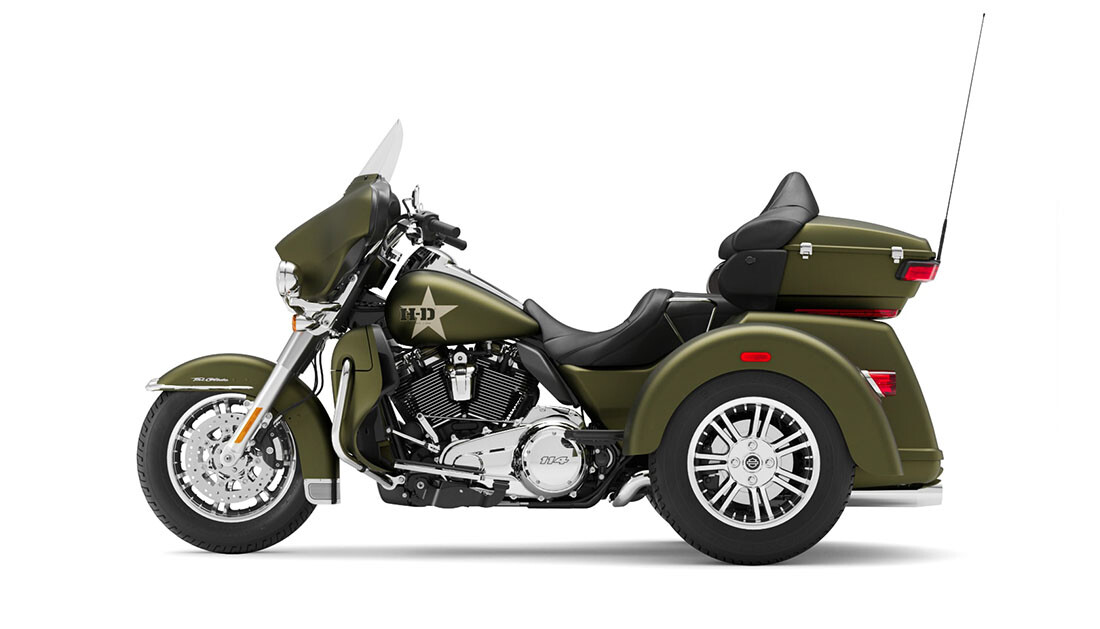

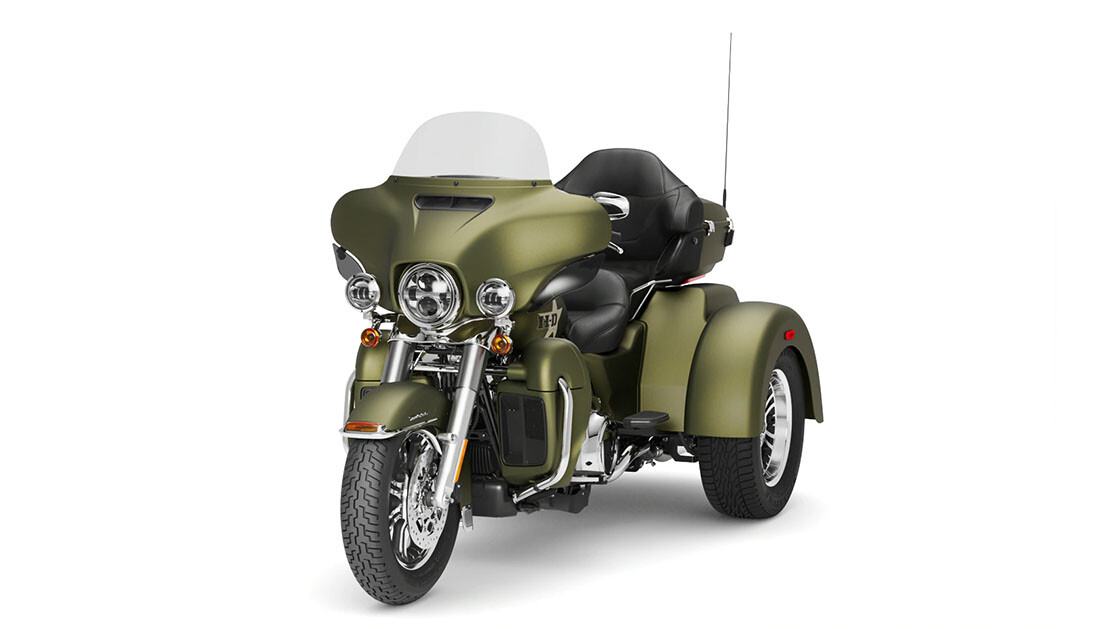

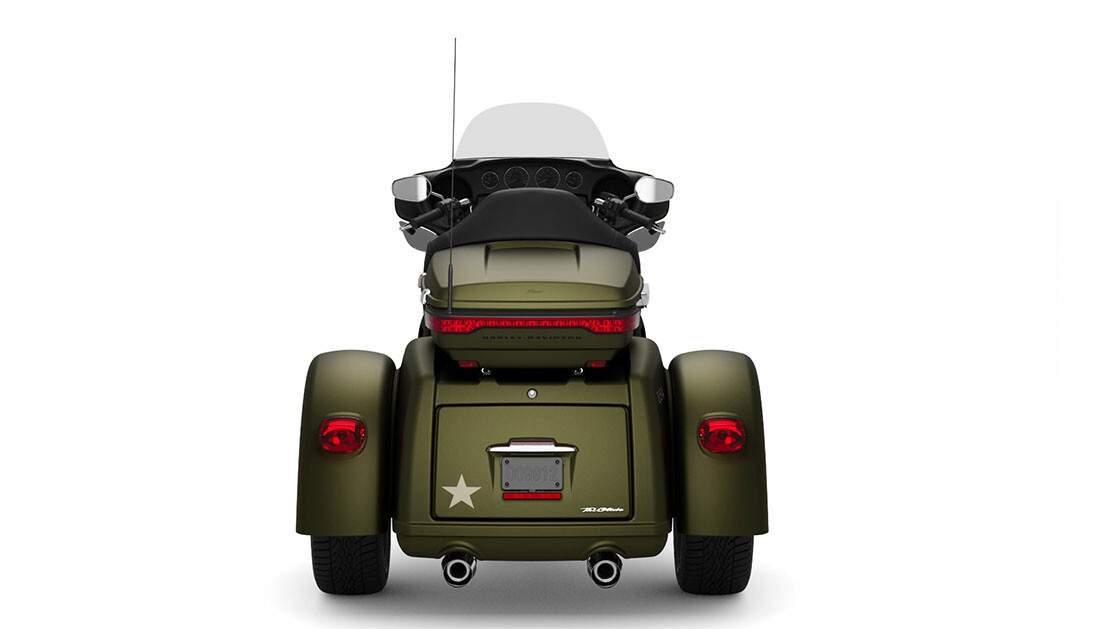

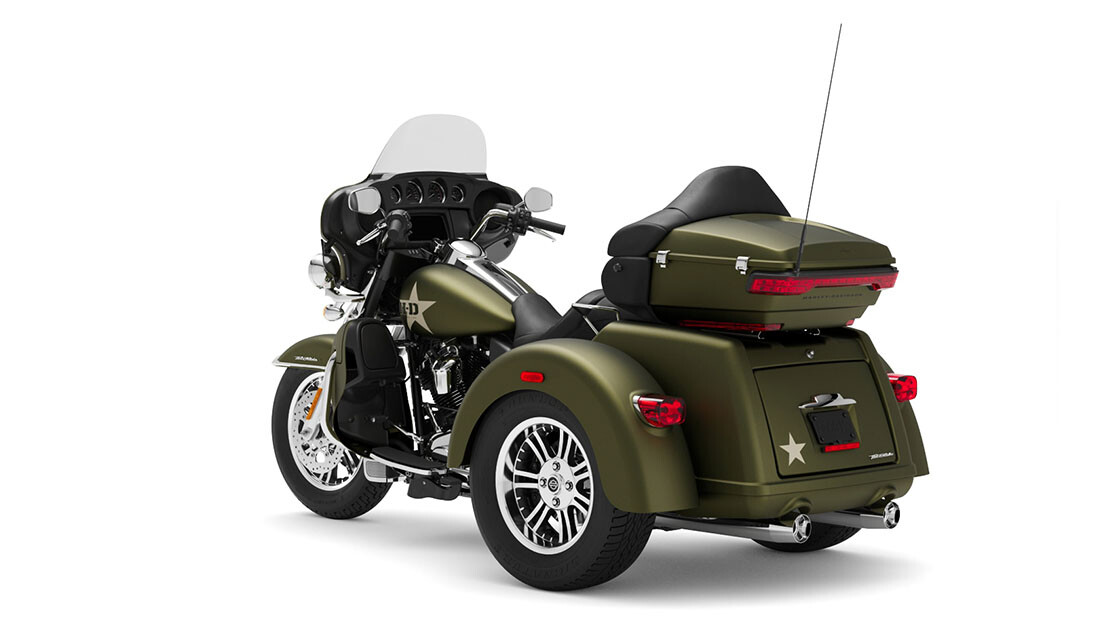

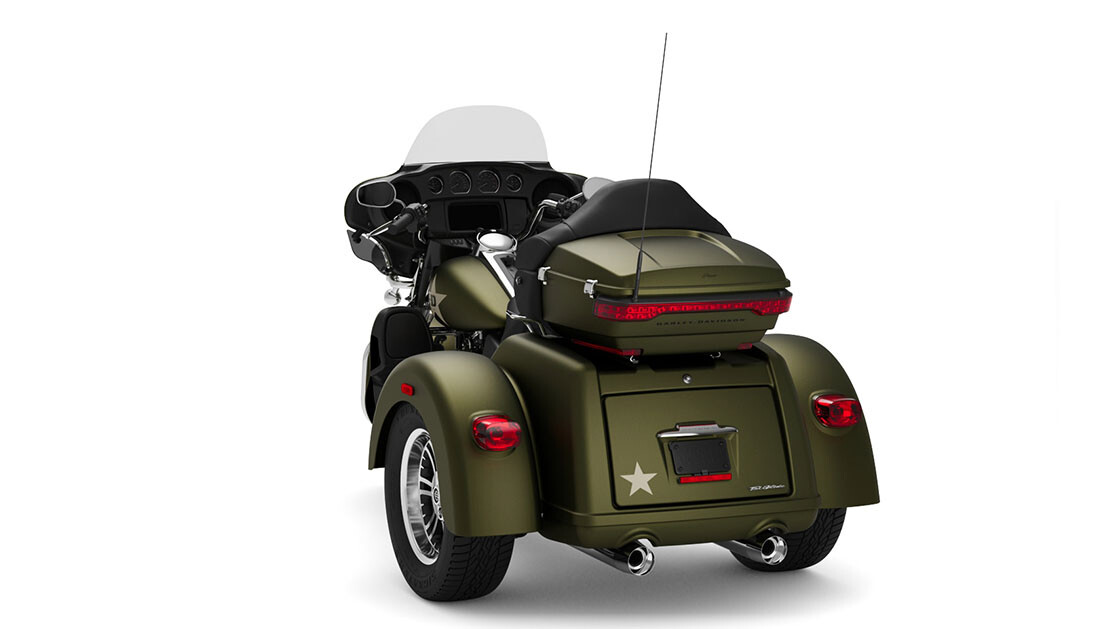

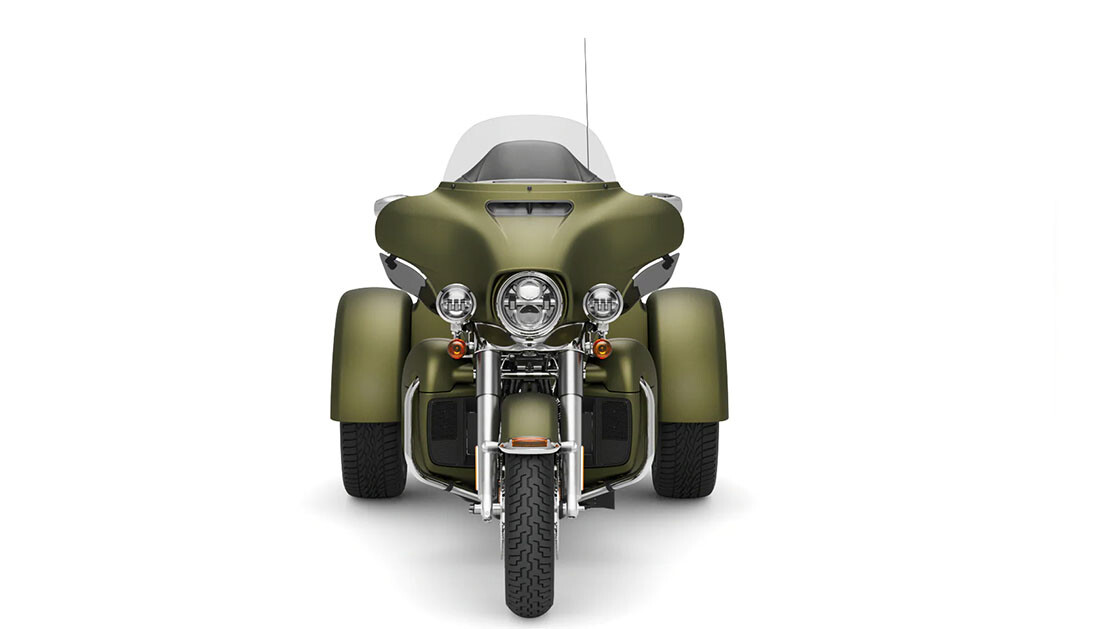

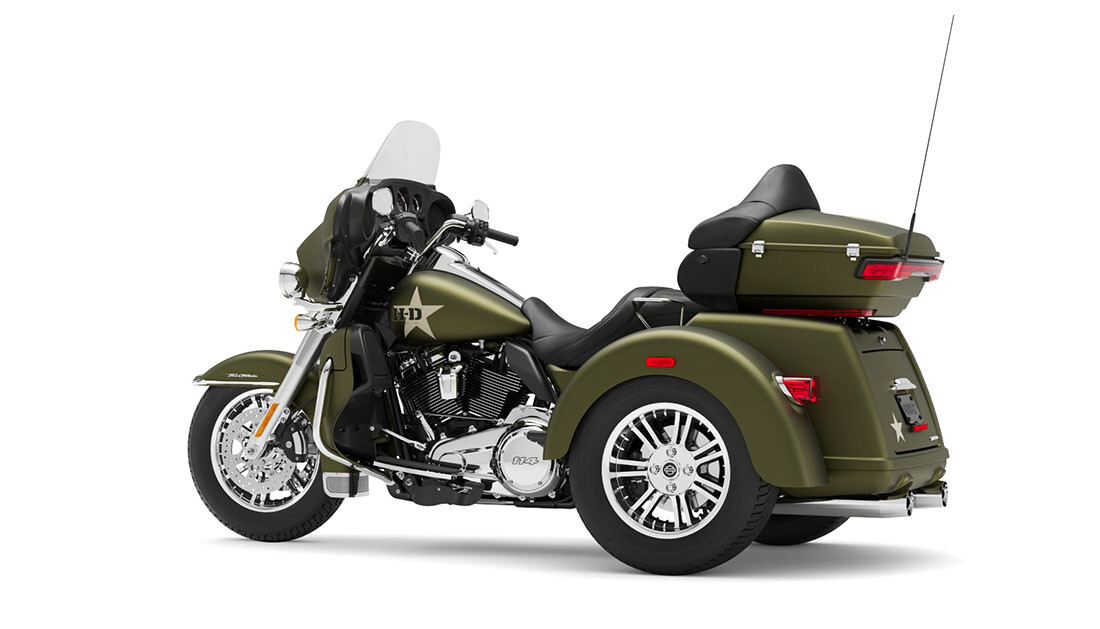

Tri Glide<sup>®</sup> Ultra G.I.

Tri Glide® Ultra G.I.

Book test ride Request details Value My Trade

Description

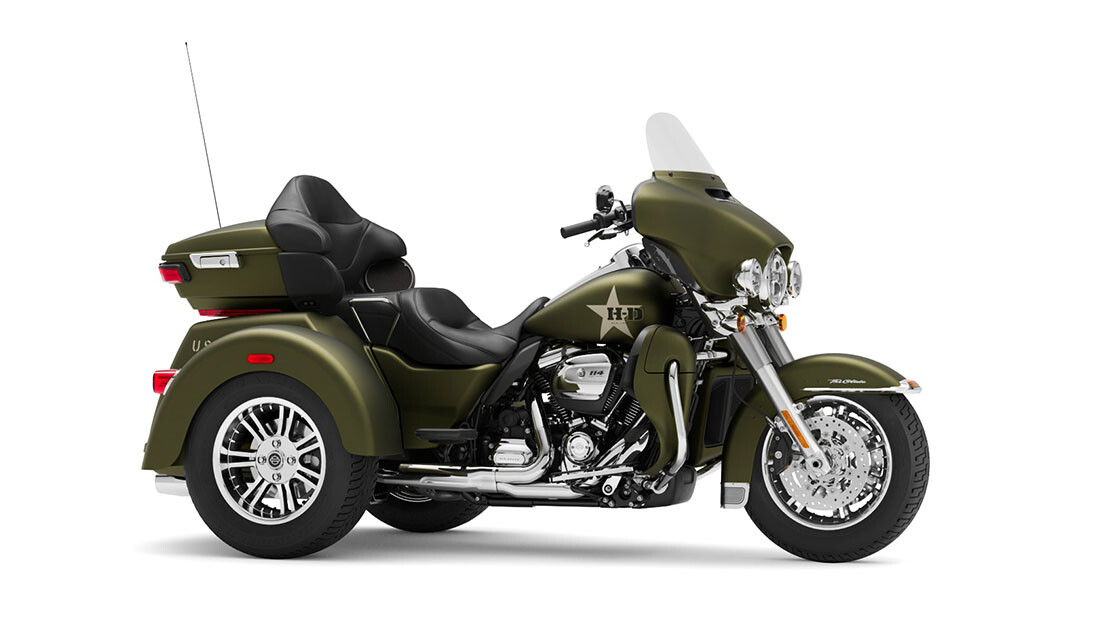

The Tri Glide® Ultra G.I. is a modern-day military tribute to independence and personal expression, honoring Harley-Davidson’s community of riders who have and continue to serve in the US Armed Forces. Draped in stunning Mineral Green Denim Deluxe paint with military inspired graphics, this limited-edition model is for those who value the riding comfort, performance, and ample storage space that three wheels deliver for the long haul.

Disclaimer

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

Length 105.1 in
Seat Height 27.1 in
Seat height, unladen 28.9 in
Ground clearance 4.9 in
Rake (steering head) 26
Trail 3.9 in
Wheelbase 65.7 in
Tires, front specifications MT90B16 72H
Tires, rear specifications P205/65R15 92T
Fuel Capacity 6 gal
Oil capacity 5 qt.
Weight, as shipped 1,204 lbs
Weight, in running order 1243 lb
Luggage capacity – Volume 6.8 cu ft (0.19 m3)
Engine Twin-Cooled™ Milwaukee-Eight® 114
Bore 4 in
Stroke 4.5 in
Displacement 113.99 in3
Compression ratio 10.5:1
Fuel system Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-1-2 dual exhaust with tapered mufflers
Primary drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 10.534
Gear Ratios (overall) 2nd 7.302
Gear Ratios (overall) 3rd 5.423
Gear Ratios (overall) 4th 4.392
Gear Ratios (overall) 5th 3.741
Gear Ratios (overall) 6th 3.157
Engine torque testing method J1349
Engine torque 121 ft-lb
Engine torque (RPM) 3250
Lean angle, right (deg.) N/A
Lean angle, left (deg.) N/A
Fuel economy testing method Estimated City/Hwy
Fuel economy 5.6 l/100 km
CO2 emissions testing method N/A
CO2 emissions N/A
Wheels, front type Black, 7-spoke Cast Aluminum
Wheels, rear type Black, 7-spoke Cast Aluminum
Brakes, caliper type Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
Lights (as per country regulation), Indicator Lamps High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, low fuel warning, reverse, park brake, fog/aux lamp indicator
Gauges Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
Infotainment system Boom!™ Box GTS
Type Full Color TFT
Watts per channel 25
Speakers 4
Speaker size 5.25 inch/6.5 inch P&A; Upgrade
Headset specifications (if equipped) 16 - 64 ohms
AM Standard
FM Standard
Weather Band (WB) Standard
SD Card, Flash Drive and MP3 - via USB Connection Supported
SiriusXM Presets 20 - P&A; Upgrade (USA & Canada only)
Languages English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
Hands-free Mobile Phone - via Bluetooth Standard
Voice Recognition Languages: Phone functions only Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation Phone dependent
Text-to-Speech (TTS) Languages Phone dependent
Rider/Passenger Intercom Standard (Passenger Headset Sold Separately)
Vehicle information screen Standard
USB USB/MTP/iPod/iPhone
Bluetooth Phone/Media Supported
Mineral Green Denim Deluxe
