CVO<sup>™</sup> Street Glide<sup>®</sup>
CVO<sup>™</sup> Street Glide<sup>®</sup>

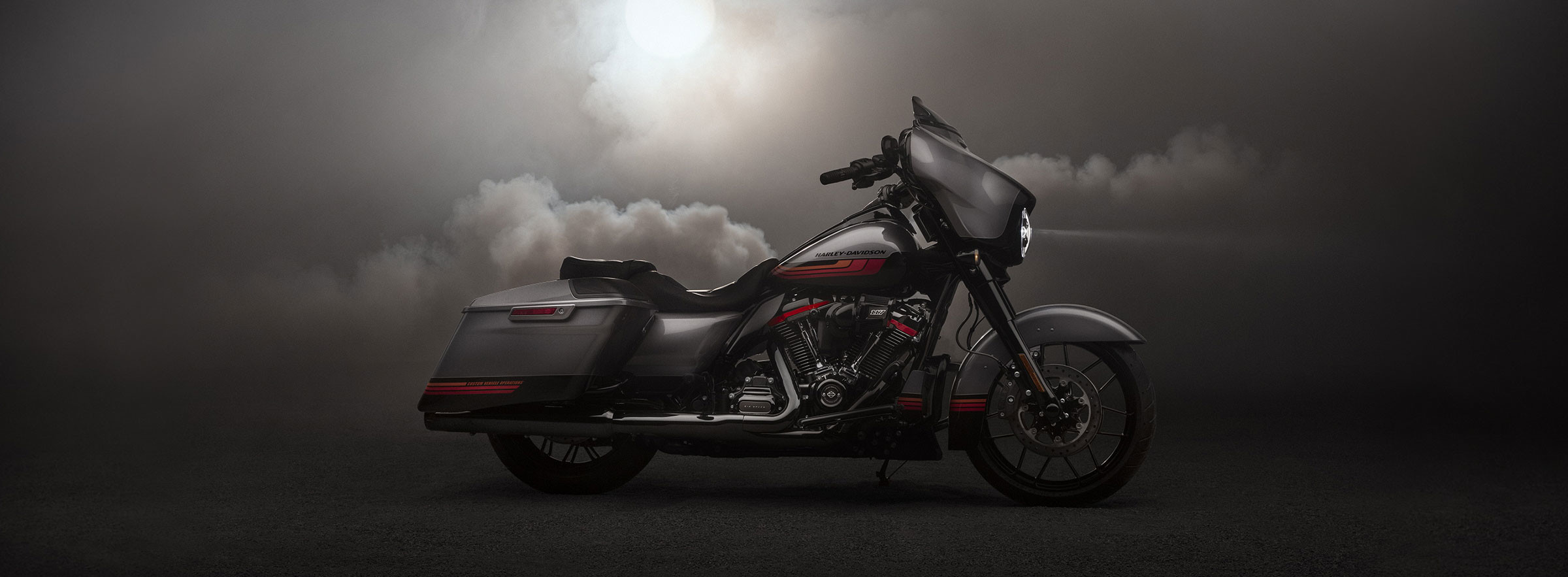

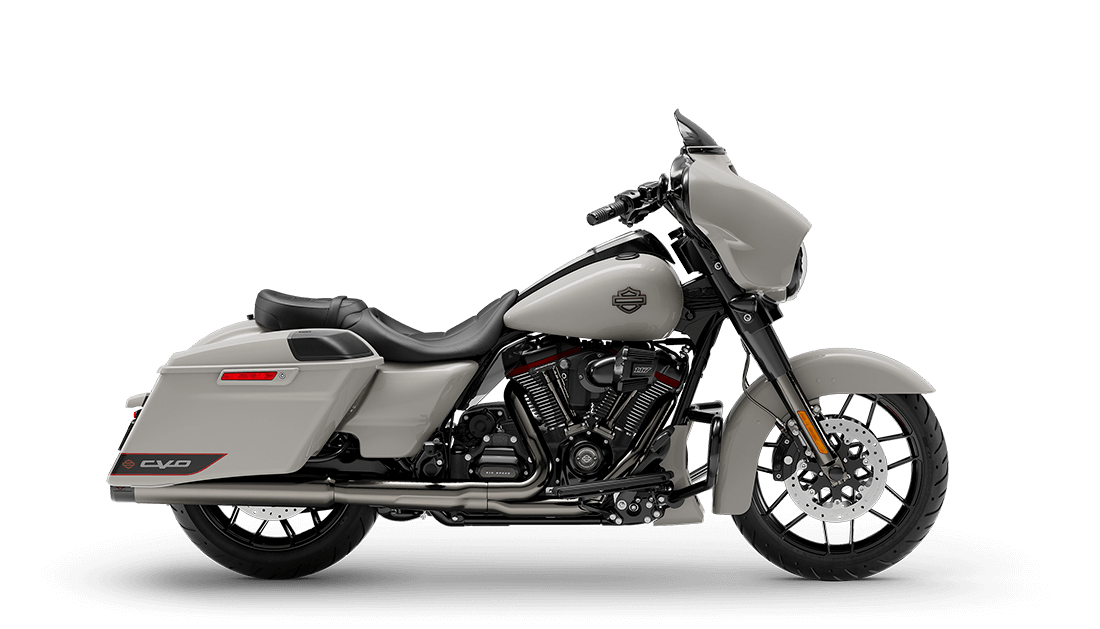

CVO Street Glide®

Description

The CVO™ Street Glide® is the absolute pinnacle of H-D style, comfort and performance. The gargantuan Milwaukee-Eight® 117 V-Twin engine powers this balanced marriage of machinery and technology, while the BOOM!™ Box GTS infotainment system and headset make up the bike's communications center.

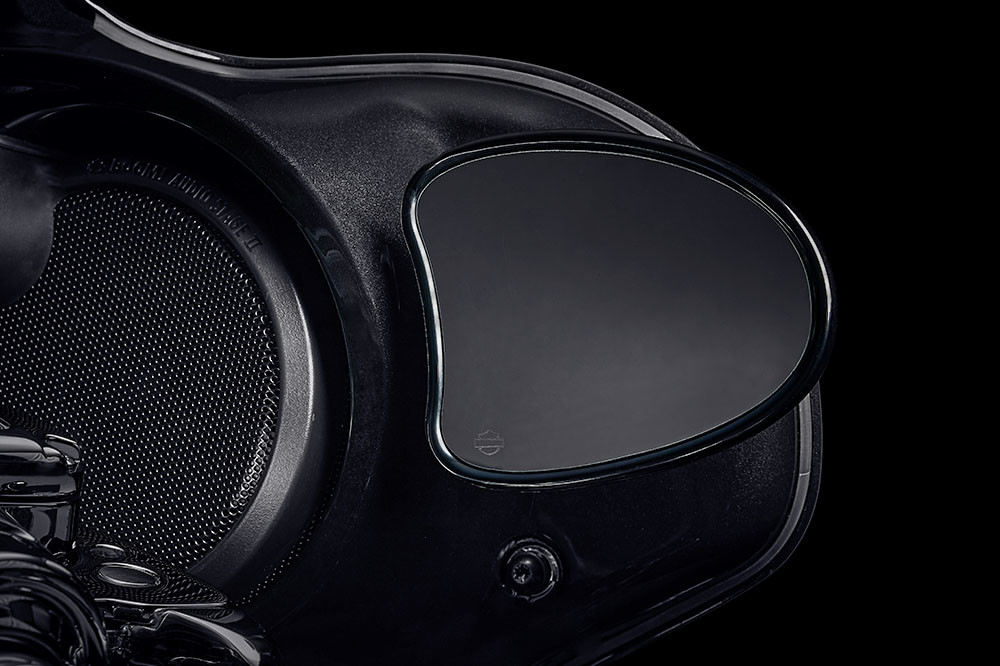

New detailing includes Fugitive™ aluminum wheels, a low-profile, two-piece tank, custom-stitched seats and backrest covers, smoked mid-frame air deflectors and fairing-mounted mirrors. With additional premium features like H-D™ Connect and Reflex™ Defensive Rider Systems, this is a truly thrilling bike created for those looking to show off their two-wheeled transcendence.

Disclaimer

*H-D™ Connect availability is standard for LiveWire™, as well as MY20 Touring, Trike and CVO models (except Road King® Special, Electra Glide® Standard and Freewheeler®), in regions where available.

H-D™ Connect service will be provided for one year with the purchase of any new H-D Connect™ applicable motorcycle and available with a subscription charge following that first year. The H-D™ Connect service is not available in all markets. See dealer for details.

Specifications

Length 95.9 in
Seat Height 26.1 in
Fuel Capacity 6 gal
Ground clearance 5.1 in
Rake (steering head) 26
Trail 6.7 in
Wheelbase 1,625 mm
Tires, front specifications BW 130/60B19 61H
Tires, rear specifications BW 180/55B18 80H
Oil capacity 5 qt.
Weight, as shipped 831 lbs
Weight, in running order 866 lb
Luggage capacity – Volume 2.4 cu ft (0.068 m3)

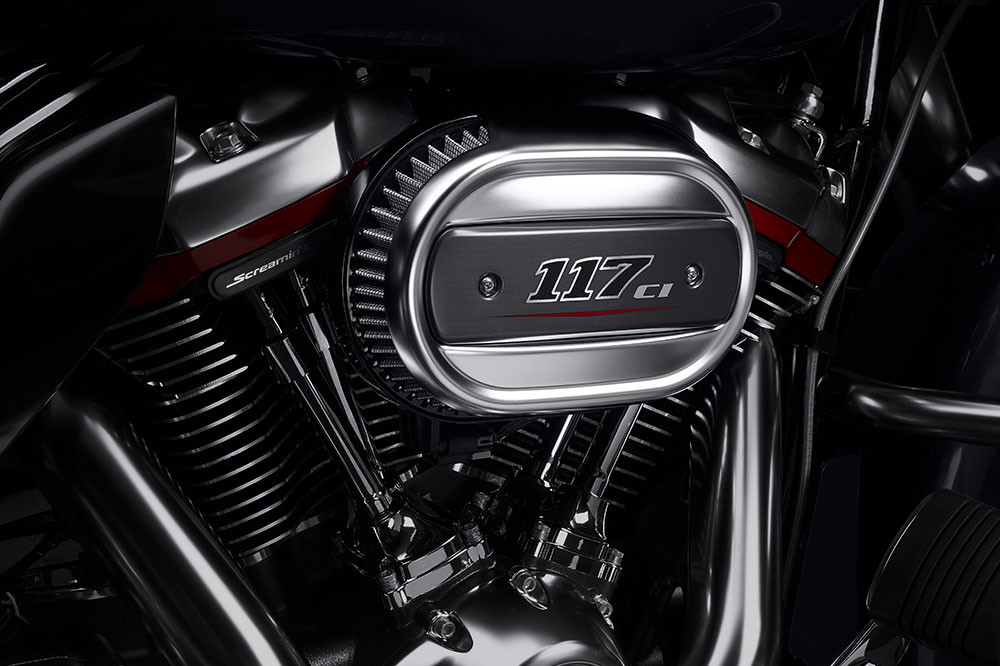

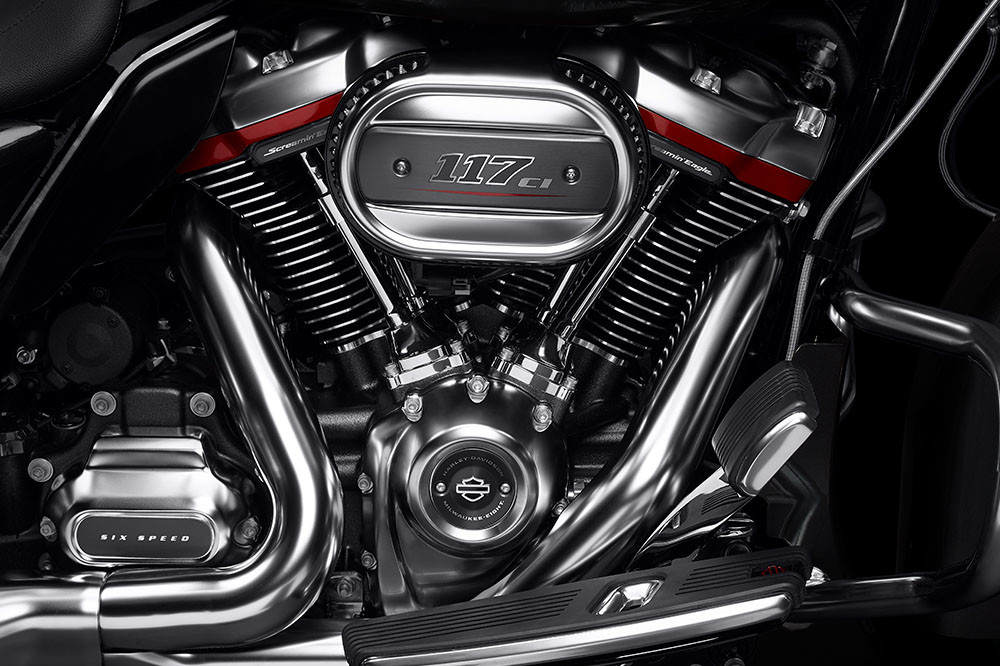

Engine Milwaukee-Eight® 117
Bore 4.1 in
Stroke 4.5 in
Displacement 117.35 in3
Compression ratio 10.2:1
Fuel system Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust Dual, with crossover
Primary drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.593
Gear Ratios (overall) 2nd 6.65
Gear Ratios (overall) 3rd 4.938
Gear Ratios (overall) 4th 4
Gear Ratios (overall) 5th 3.407
Gear Ratios (overall) 6th 2.875
Engine torque testing method J1349
Engine torque 124.6 ft-lb
Lean angle, right (deg.) 32
Lean angle, left (deg.) 31
Fuel economy 5.7 l/100 km
Wheels, front type Gloss Black Fugitive
Wheels, rear type Gloss Black Fugitive
Wheels, optional style type Charcoal Gray Fugitive
Brakes, caliper type 32 mm, 4-piston fixed front and rear
Lights (as per country regulation), Indicator Lamps Headlight, running lights, directional lights, neutral, low oil pressure, check engine, turn signals, security/fault indication,gear indication, neutral, low fuel warning, cruise control, ABS, Low Tire Pressure/TPMS indicator, Traction Control, Rain Mode,
Gauges - Custom gauges styled to complement each CVO vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

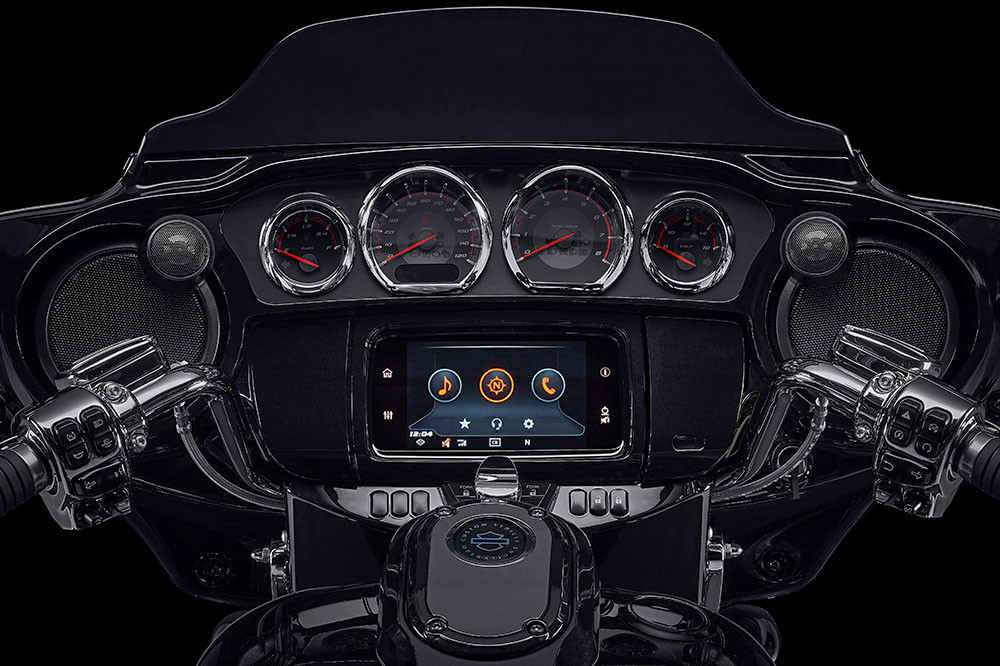

Infotainment system Boom!™ Box GTS
Type Full Color TFT
Watts per channel 75
Speakers 4
Speaker size Boom! Audio Stage II
Headset specifications (if equipped) Boom! Audio 30K Wireless Headset
AM Standard
FM Standard
Weather Band (WB) Standard
SD Card, Flash Drive and MP3 - via USB Connection Supported
SiriusXM Presets 20 - P&A; Upgrade (USA & Canada only)
Languages English (US/UK)
German
Spanish (Mexico/Spain)
French (Canada/France)
Italian
Portuguese (Portugal/Brazil)
Russian
Czech
Polish
Dutch
Turkish
Japanese
Hands-free Mobile Phone - via Bluetooth Standard
Voice Recognition Languages: Phone functions only English (US/UK)
German
Spanish (Mexico/Spain)
French (Canada/France)
Italian
Portuguese (Portugal/Brazil)
Russian
Czech
Polish
Dutch
Turkish
Japanese
Voice Recognition Languages: Tuner / Media / Navigation English (US/UK)
German
Spanish (Mexico/Spain)
French (Canada/France)
Italian
Portuguese (Portugal/Brazil)
Russian
Czech
Polish
Dutch
Turkish
Japanese
Text-to-Speech (TTS) Languages English (US/UK
Rider/Passenger Intercom Rider Standard
Vehicle information screen Standard
Sand Dune
Black Stardust Fade
Smoky Gray & Black Hole
