2016 Harley-Davidson® XG500 Street® 500 — Contact Dealer for Pricing

Current ›› Harley-Davidson® ›› Street ›› Street-500 ››

Info

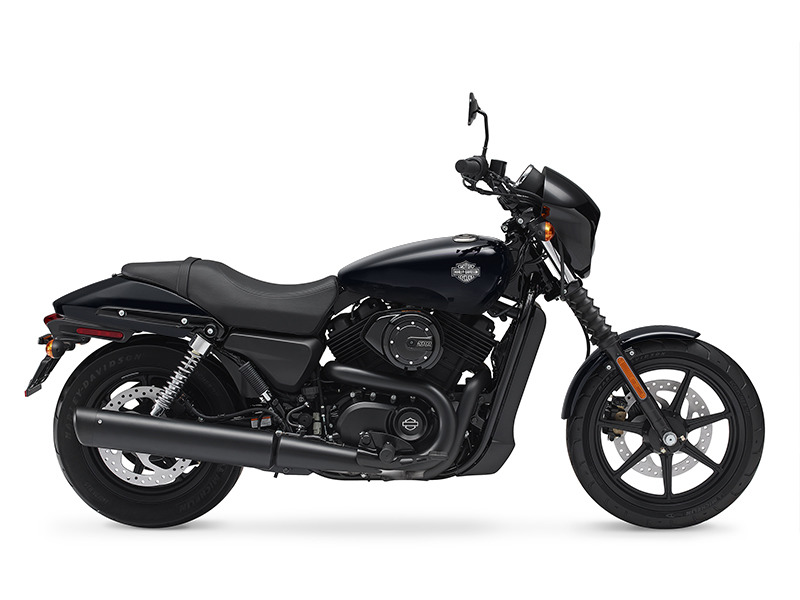

2016 Harley-Davidson® Street® 500

Take on the urban grid with 500cc of easy-handling, blacked-out Harley-Davidson® Dark Custom™ style.

A hot night on the town never felt better.

The action goes from stoplight to stoplight, boulevard to back alley. At the center of it all you carve through heat, chaos and gridlock with ease. You get a liquid-cooled Revolution X™ engine loaded with torque and built to thrive in stop and go traffic. A light frame with an easy lock-to-lock handlebar sweep for quick moves. And dark styling details like blacked out pipes, café-style windscreen and fork gaiters to put the edge on the look. Got any plans for the evening?

Features May Include:
  • Urban Mobility
  • We were all warned as kids about playing in the street. If you’re the sort who never listened to a word of it, we’ve got your motorcycle. The street is where the action is. The Harley-Davidson Street® series is a line of bikes built with one purpose in mind: to make the most of it. Every inch of the motorcycle has been thought through to meet the demands of navigating the urban landscape. A narrow and nimble profile with a tight 60.4-inch wheelbase keeps the handling razor sharp. Quick moves and turns come easy when you’re threading through whatever modern civilization decides to throw in your path. You have liquid cooling. You have loads of power in the Revolution X™ engine, for when you need to be somewhere else in a hurry. We’re talking about a whole different kind of two-wheeled animal here. One born to take on the traffic-snarled urban jungle.

  • Authentic H-D
  • We built the Harley-Davidson Street® series to be affordable machines for those who’ve gotta work to put gas in the tank and pay the meter maid when you find a place to park. But we did it our own way. That means we did it right. The beautifully formed teardrop fuel tank is Milwaukee steel, just like the fenders. Then we painstakingly finish it with one of our premium paintjobs, and top it with a 3-D chrome badge. Not a decal. Fire up the engine and you hear the pure signature rumble of a Harley-Davidson V-Twin, tuned to perfection in our state-of-the-art sound facility in Wauwatosa, Wisconsin USA. In other words, from the rock-solid belt final drive all the way forward to the Café-racer speed screen derived from deep in our factory custom heritage, there is no mistaking what the bikes in our newest family are. 100% pure Harley-Davidson motorcycle.

  • CUSTOM SOUL
  • Fact: get yourself to a part of town where interesting things are happening and you’ll see some rad custom bikes loaded with dark, aggressive style. Chances are they started life as a Harley-Davidson Street® model. We built our newest line of bikes from the no-nonsense blacked-out wheels up to be the ultimate blank canvas for customizing. Of course, each one is also first and foremost a Harley-Davidson motorcycle, so even fresh off the line it’s a lean, mean and eye-popping machine. Every inch of the up-swept two-into-one exhaust is black. The first time we’ve done that since the ‘70s, when it was a signature part of the famous XLCR Café Racer. You also see a shout-out to renegade ‘70s street bike culture in the minimalist speed screen adorning the blacked out front end. In short, you’ve got a machine loaded with Dark Custom™ attitude.

    Photos

    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail

    Specifications

    2016 Harley-Davidson® XG500 Street® 500 Base
    Year 2016
    Manufacturer Harley-Davidson®
    Model Name XG500 Street® 500
    Trim Name Base
    Generic Type (Primary) Cruiser
    Dimensions
    Length 87.6 in.
    Seat Height, Laden 25.7 in.
    Seat Height, Unladen 28 in.
    Ground Clearance 5.7 in.
    Rake (steering head) (deg) 32
    Trail 4.5 in.
    Wheelbase 60.4 in.
    Tires, Front Specification 100/80 R17
    Tires, Rear Specification 140/75 R15
    Fuel Capacity 3.5 gal.
    Oil Capacity (w/filter) 3.3 qt.
    Weight, As Shipped 455 lb.
    Weight, In Running Order 489 lb.
    Luggage Capacity -Volume
    Luggage Capacity -Weight
    Engine
    Engine Liquid-cooled, Revolution X™ V-Twin
    Bore 2.72 in.
    Stroke 2.6 in.
    Displacement 30 cu in
    Compression Ratio 11:01
    Fuel System Mikuni Single Port Fuel Injection, 35 mm bore
    Drivetrain
    Primary Drive Gear, 36/68 ratio
    Gear Ratios (overall) 1st 14.25
    Gear Ratios (overall) 2nd 10.07
    Gear Ratios (overall) 3rd 7.45
    Gear Ratios (overall) 4th 5.99
    Gear Ratios (overall) 5th 5.04
    Gear Ratios (overall) 6th 4.53
    Chassis
    Exhaust Black two- into-one exhaust
    Wheel Type, Optional Style
    Wheel Type, Front Black, 7-spoke Cast Aluminum
    Wheels Type, Rear Black, 7-spoke Cast Aluminum
    Brakes, Caliper Type 2-piston floated front and rear
    Parking Brake
    Performance
    Engine Torque Testing Method J1349
    Engine Torque 29.5 ft-lb
    Engine Torque (rpm) 3,500
    Lean Angle, Right (deg.) 28.5
    Lean Angle, Left (deg.) 28.5
    Fuel Economy: Combined City/Hwy 41 mpg
    Electric
    Lighting High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
    Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap.
