2016 Harley-Davidson® FLTRUSE CVO™ Road Glide® Ultra — Contact Dealer for Pricing

Current ›› Harley-Davidson® ›› CVO ›› CVO-Road-Glide-Ultra ››

Info

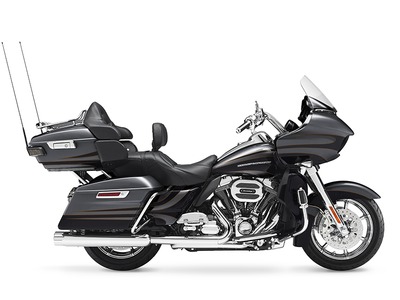

2016 Harley-Davidson® CVO™ Road Glide® Ultra

The CVO™ Road Glide® Ultra motorcycle combines our ultimate wind-splitting frame-mounted fairing with the ultimate in mile-eating comfort and eye-popping custom style.

What’s the point of holding anything back?

Good thing there’s no legal limit on the way a motorcycle makes you feel. The Project RUSHMORE CVO™ Road Glide® Ultra motorcycle would be in violation before your eyes even made it past the wicked lines of the fairing. The paint is too loud. The power from 110 cubic inches of Harley-Davidson® V-Twin engine with Ventilator performance intake is too loaded with temptation. You have been warned.

Features may include:
  • Control
  • If your appetites run to big, gluttonous quantities of asphalt, we have your motorcycle. It’s built by the perfectionists in Custom Vehicle Operations™, and it starts with the best of everything that makes a Harley-Davidson motorcycle work so well on the open road.

  • Infotainment
  • You want to spend a few hours talking woven carbon fiber cone woofers, polypropylene fiber dome midrange and aluminum dome tweeters? How about an intelligent speed tuning system that adjusts the volume to match whatever speed zone you just blasted into, then balances the level of bass and treble as well? We didn’t think so.

  • Feel
  • We know that getting to the point in life where you have a Harley-Davidson CVO™ motorcycle in your garage takes some serious effort. So we pour our effort into making every mile you log on the bike feel like a giant reward.

  • Style
  • Let’s cut right to the quick here. Center stage on a CVO™ motorcycle goes to the big Twin Cam 110™ engine, so it comes fully tricked out in deep, breathtaking chrome and Screamin’ Eagle badging.

    Photos

    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail
    • product image thumbnail

    Specifications

    2016 Harley-Davidson® FLTRUSE CVO™ Road Glide® Ultra Base
    Year 2016
    Manufacturer Harley-Davidson®
    Model Name FLTRUSE CVO™ Road Glide® Ultra
    Trim Name Base
    Generic Type (Primary) Touring
    Dimensions
    Length 102.2 in.
    Seat Height, Laden 28.4 in.; Measurement reflects 180 lb. (81.7 kg) operator weight.
    Seat Height, Unladen 29.7 in.; Measurement reflects 180 lb. (81.7 kg) operator weight.
    Ground Clearance 4.7 in.
    Rake (steering head) (deg) 26
    Trail 6.7 in.
    Wheelbase 64 in.
    Tires, Front Specification BW 130/80B17 65H
    Tires, Rear Specification BW 180/65B16 81H
    Fuel Capacity 6 gal.
    Oil Capacity (w/filter) 4 qt.
    Weight, As Shipped 905 lb.
    Weight, In Running Order 943 lb.
    Luggage Capacity -Volume 4.7 cu ft
    Engine
    Engine Twin-Cooled™ Twin Cam 110™; Recommended 91 octane or higher fuel (R+M)/2.
    Bore 4 in.
    Stroke 4.374 in.
    Displacement 110 cu in
    Compression Ratio 9.2:1
    Fuel System Electronic Sequential Port Fuel Injection (ESPFI); Standard and optional fuel systems may vary by country.
    Drivetrain
    Primary Drive Chain, 34/46 ratio
    Gear Ratios (overall) 1st 9.593
    Gear Ratios (overall) 2nd 6.65
    Gear Ratios (overall) 3rd 4.938
    Gear Ratios (overall) 4th 4.0
    Gear Ratios (overall) 5th 3.407
    Gear Ratios (overall) 6th 2.875
    Chassis
    Exhaust Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields
    Wheel Type, Front Mirror Chrome Slicer Custom Wheel; Standard and optional wheels may vary by country and region.
    Wheels Type, Rear Mirror Chrome Slicer Custom Wheel
    Brakes, Caliper Type 32 mm, 4-piston fixed front and rear
    Performance
    Engine Torque Testing Method J1349
    Engine Torque 115.1 ft-lb; Values shown are nominal. Performance may vary by country and region.
    Engine Torque (rpm) 3,750
    Lean Angle, Right (deg.) 31.9
    Lean Angle, Left (deg.) 31.8
    Fuel Economy: Combined City/Hwy 41 mpg
    Electric
    Lighting High beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
    Gauges New gauges: 10% larger speedometer and tachometer with 68% wider numbers; 28% larger fuel and volt gauges with 30% wider numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators
